ZIP Flap Technique

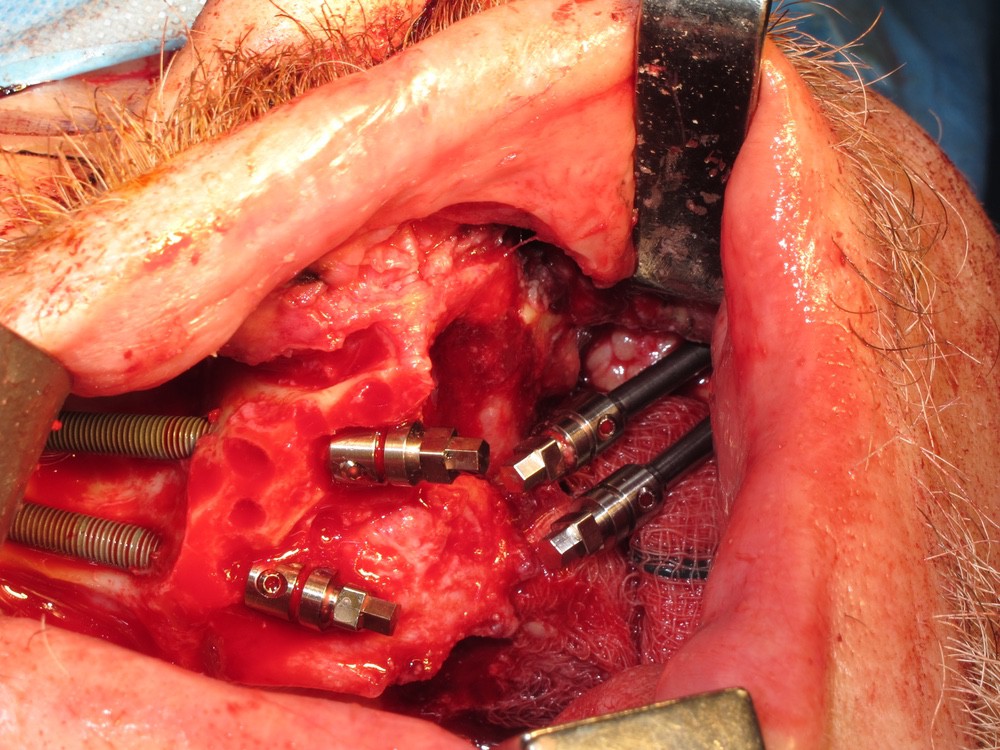

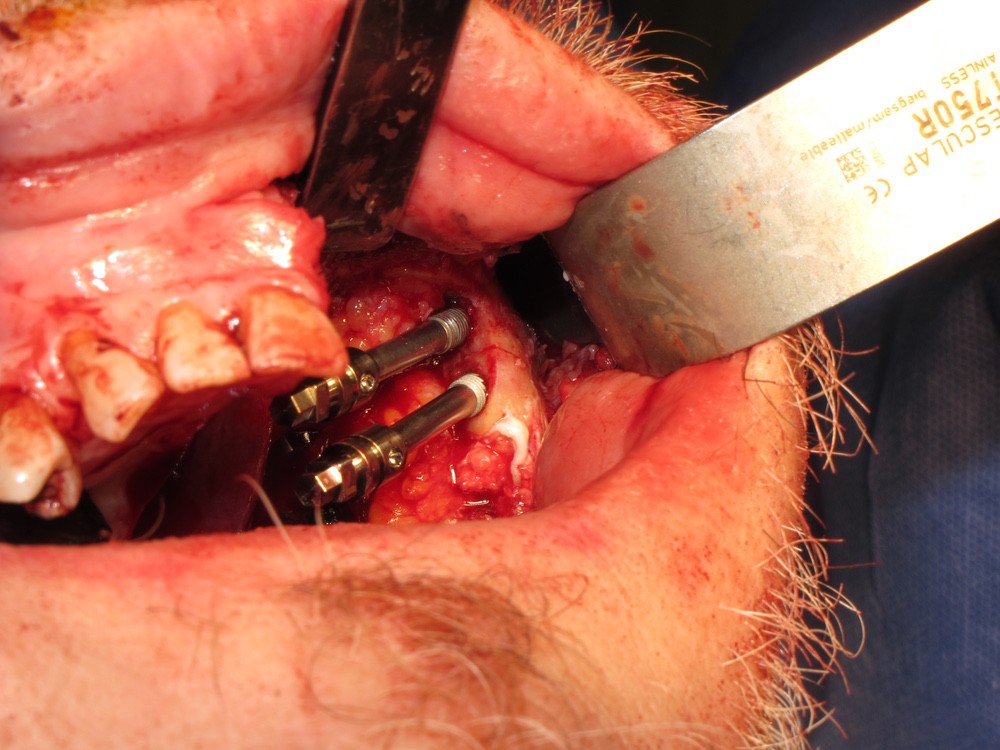

The Zygomatic Implant Perforated (ZIP) Flap technique was first described by Professor Butterworth & Professor Simon Rogers in 2017. The ZIP flap combines the use of zygomatic implants at the time of low-level maxillectomy together with a soft tissue flap to close the defect. The result for the patient is a closed maxillary defect and a fixed dental prosthesis all within weeks of surgery.

  • image

    Post-op radiograph showing oncology & conventional zygomatic implants
  • image

    Pre-op CT scan showing left maxillary tumour
  • image

    Pre-op OPG
  • image

    12 month review following adjuvant treatment with radiotherapy
  • image

    Initial bridge in situ at 4 month review
  • image

    screw-retained metal/acrylic bridgework
  • image

    Healed flap and implants after bridge removal
  • image

    Fit surface of registration which records position of the abutment caps
  • image

    Jaw registration using complete denture prosthesis
  • image

    Excerpt with no title
  • image

    Zip Flap 1e

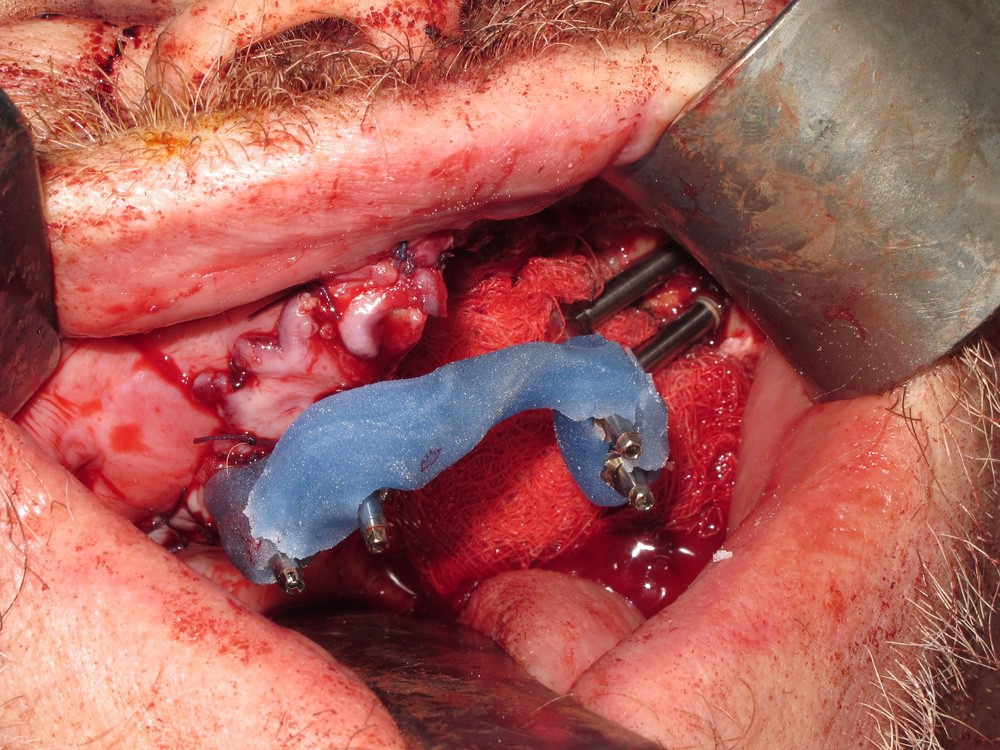

    Light cured tray material is used to register the inter-implant positioning
  • image
  • image
  • image
  • image

    ZIP Flap 1a

    Malignant tumour left maxilla
  • image

    Zygomatic Implant Perforated (ZIP Flap) Technique

    excerpt text - can it be seen
